Product features:
- Lightweight body design, easy to carry.
- The whole machine is equipped with a remote control handle, safe and easy to operate.
- Equipped with a high-precision pressure gauge for precise pressure regulation.
- Snap-on quick connector, quick and convenient operation.
- Two-stage plunger pump, compact structure, sturdy and reliable, lightweight.
- Optional high-performance radiator to ensure that the pump station can work continuously for a long time.
- Single-acting and double-acting optional, suitable for various application conditions.
- Motor power 1.5KW, strong power, large flow.
- Suitable for bolt tensioner pump matching, wind power, shipbuilding and other industries.
Technical parameters

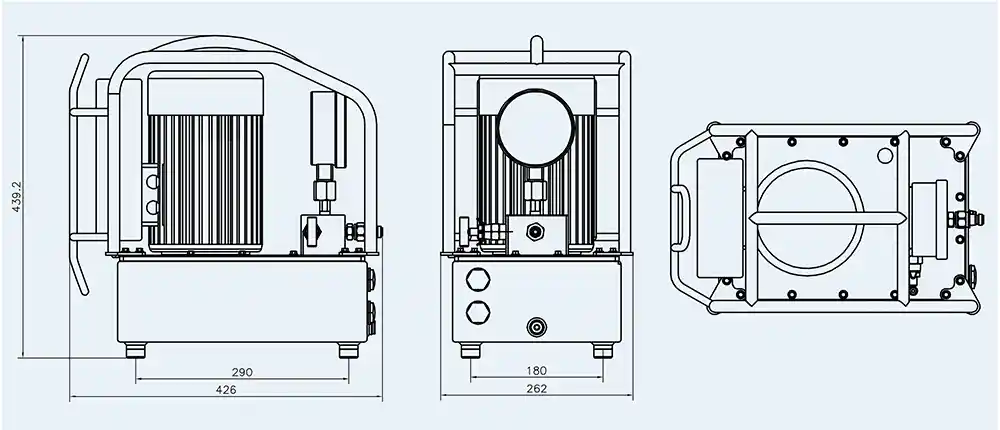

| Model | Oil Flow (L/min) | Pressure (Mpa) | Power | Oil Capacity | Weight | Input Power | Dimension | ||
| High | Low | High | Low | kw | L | kg | (mm) | ||
| ETP1504 | 0.4 | 2 | 150 | 30 | 1.5 | 8 | 22 | 220V 50HZ | 426*262*440 |
Why Choose EKXIA’s Hydraulic Tensioning Pump
- Achieve Significant Time Savings: Our pump’s multi-stage flow technology allows rapid run-down of nuts at high speed initially, dramatically reducing overall bolting time compared to single-speed pumps.
- Ensure Precise & Reliable Torque: The smooth transition to high pressure at low flow ensures consistently accurate final torque application, crucial for joint integrity and safety, eliminating the risk of under or over-tightening.
- Maximize Pump Durability & Value: The optimized flow/pressure staging reduces unnecessary stress and heat generation during operation, significantly extending the pump’s service life and lowering your total cost of ownership through reduced maintenance and downtime.
Watch Our Hydraulic Tensioning Pump in Action
See how EKXIA’s hydraulic tensioning pump delivers high-precision performance in real-world industrial applications. Experience its power, speed, and reliability through on-site demonstrations.
Frequently Asked Questions – Hydraulic Tensioning Pump
Our hydraulic tensioning pumps are usually 220V 50Hz, if customer need 110V or 380V, it’s also available.
Yes. We have the explosion proof pump, just contact our sales representative to get the product catalogue.
These tools operate using high-pressure hydraulic pumps, which can be either electric or pneumatic depending on your application.
Absolutely. Our pumps are compatible with any model of our hdyraulic tensioners, even it’s other brand it’s also compatible.
Regular cleaning, seal inspection, and timely lubrication of key parts will keep your tool in peak condition. We also offer full after-sales support and servicing.
