Features:

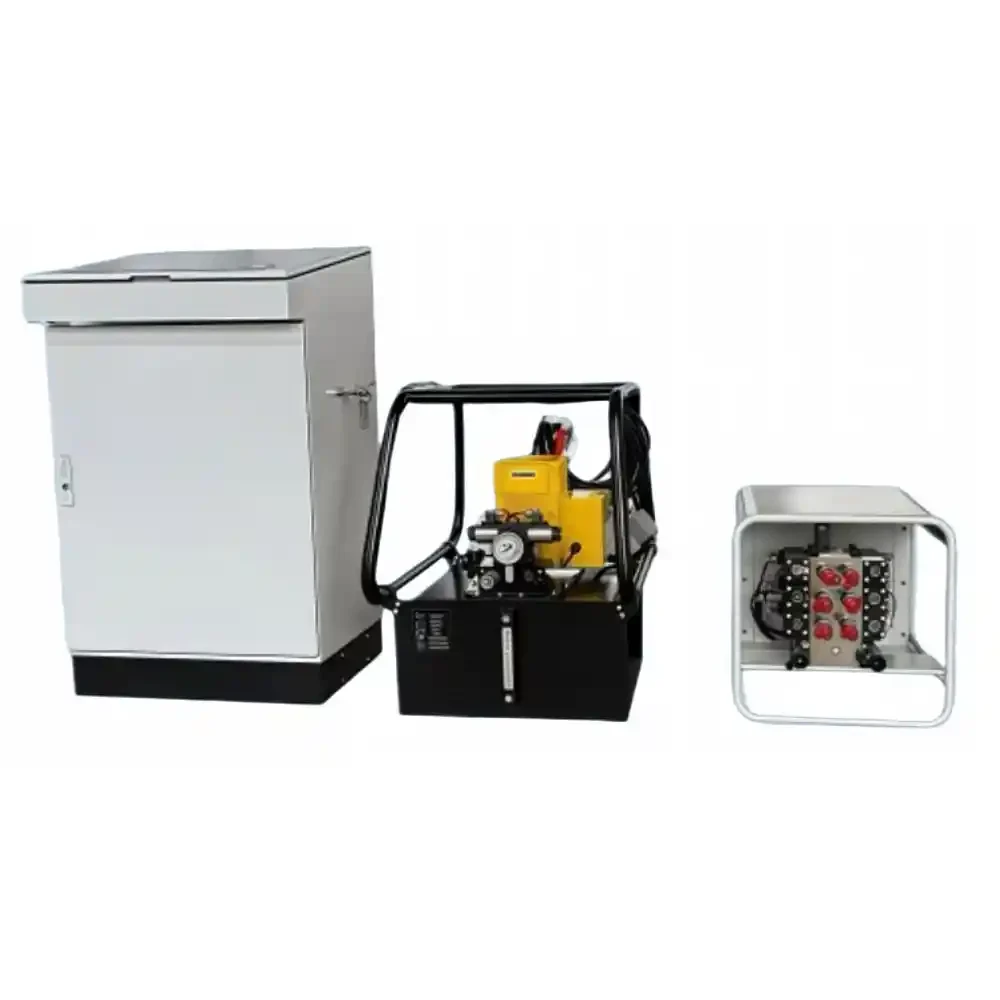

- The entire system adopts a separate design for the pump station, valve group, and control system, which is more convenient to operate and transport compared to an integrated design.
- Equipped with a human-computer interaction interface and a 10-inch touchscreen;
- Using Siemens PLCs and analog modules, data processing is faster and more stable;
- The system synchronization accuracy is ≤ ±1mm, making it more precise, safer, and more reliable.
- Employing high-precision pressure sensors, the system can display the pressure and tonnage of each unit cylinder in real time, and also displays the total tonnage, making construction safer.
- The system is equipped with online functionality and can be used in conjunction with other machines.
- The system is equipped with a displacement alarm function. When the error displacement exceeds the set displacement, the displacement alarm light will illuminate to prevent greater losses.
- The system is equipped with a high-speed solenoid valve with a response speed of ≤10ms, resulting in more precise control;
- The system is equipped with an emergency stop switch. In case of an emergency, pressing the switch will immediately stop the entire system and prevent damage.
| Model | Working voltage | Motor power | Oil capacity | Working pressure | Flow rate | Control mode | Control points | Dimension |
|---|---|---|---|---|---|---|---|---|
| (V) | (KW) | (L) | (bar) | (L/min) | (mm) | |||
| SPLC-4 | 220V | 1.5 | 40 | 700 | 8.8/0.85 | Touch screen | 4 | Control box:600*480*1060 Valve assembly:450*420*450 Pump:690*570*720 |
| SPLC-6 | 220V | 1.5 | 40 | 700 | 8.8/0.85 | Touch screen | 6 | |
| SPLC-8 | 220V | 1.5 | 40 | 700 | 8.8/0.85 | Touch screen | 8 | |
| SPLC-12 | 220V | 1.5 | 40 | 700 | 8.8/0.85 | Touch screen | 12 | |
| SPLC-16 | 220V | 1.5 | 40 | 700 | 8.8/0.85 | Touch screen | 16 |
Application Cases
Frequently Asked Questions – Synchronous Jacking System
What is the accuracy of EKXIA’s synchronous jacking system?
Our system can reach +/-1mm accuracy.
If customer has high requirements, our variable frequency system can reach +/-0.1mm accuracy.
How many jacks can the synchronous jacking system support?
Usually it’s 4, 8, 12 and 16 jacks.
What type of power source is required?
AC380V 50Hz.
What components will the system include?
It will be one complete system including hydraulic jacks, control pump station, displacement sensor, pressure sensor, cables, hydraulic hoses etc.
Can several systems operate simulaneously?
Yes, customers just need leave the requirements, the quantity of systems, our engineers will design the program and connect the several systems together and user just need operate one of them but control all.
