Features

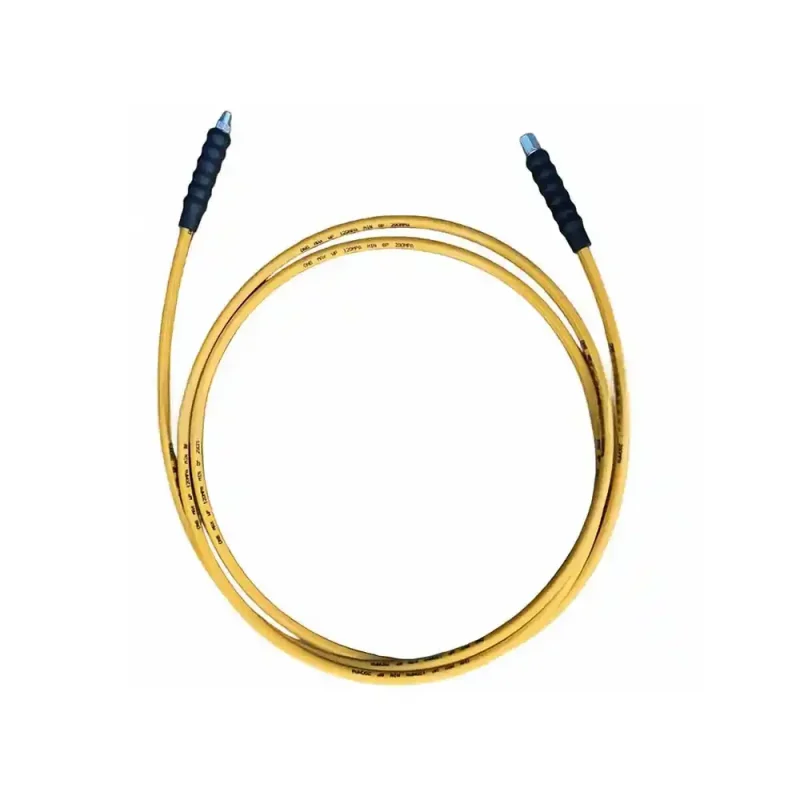

- This four-layer reinforced hydraulic hose features a high-strength steel wire braided layer.
- Its compact design prevents twisting and tangling, making it convenient to handle and install.
- Lightweight and compact design.
- Suitable for applications with strict space constraints, with tight bend radius aand minimal volumetric expansion under pressure.
| Model | TH70-2 | TH70-6 | TH70-9 | TH70-10 | TH70-20 |
|---|---|---|---|---|---|
| Length(m) | 2 | 6 | 9 | 10 | 20 |
| Type | Twin-line hose | ||||
| Connecting thread | 1/4 NPT | ||||
| Working pressure(MPa) | 70-120 | ||||
| Working temperature(℃) | -30~100 | ||||
| Burst pressure(MPa) | 290 | ||||
| Material | Nylon resin hose | ||||
| Inner liner | Nylon (PA) | ||||
| Reinforcing layer | Steel wire winding + Steel wire weaving | ||||
| Outer coating | polyurethane(PU) | ||||
| Inner diameter(mm) | 6 | ||||
| Outer diameter(mm) | 14.2 | ||||
| Features | Resistant to high pressure, resistant to various oils, resistant to acids and alkalis | ||||
| Application | hydraulic tools, hydraulic equipments | ||||
Frequently Asked Questions – Hydraulic Torque Wrench
What is the torque range of EKXIA’s coaxial hydraulic wrenches?
Our coaxial hydraulic torque wrenches cover a torque range from 151 Nm to 15921 Nm, higher torque is also available to customize.
What is the different from standard square drive wrenches?
Compared with standard square drive wrenches, this model requires less working space because the reaction arm and wrench body are coaxial.
What type of power source is required?
These tools operate using high-pressure hydraulic pumps, which can be either electric or pneumatic depending on your application.
Are the tools compatible with different bolt sizes?
Absolutely. Our wrenches accommodate a wide range of bolt sizes—from M19 to M175—using interchangeable impact sockets.
How do I maintain the hydraulic wrench for long-term use?
Regular cleaning, seal inspection, and timely lubrication of key parts will keep your tool in peak condition. We also offer full after-sales support and servicing.
